SOFAST 2.0

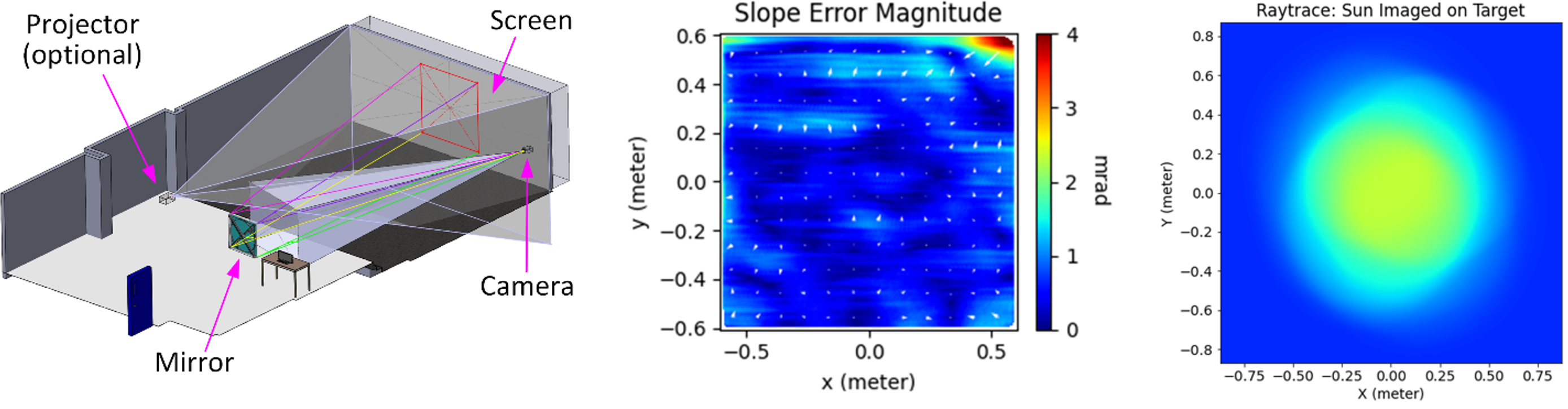

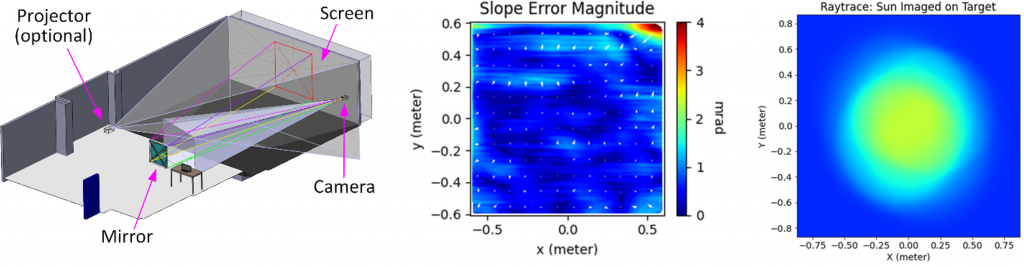

SOFAST 2.0 is a system for measuring high-resolution maps of mirror slope. It produces a variety of analytic output products; slope error magnitude and built-in ray-tracing analysis are shown here. It is flexible and can be applied to a wide variety of physical layouts.

Click image to enlarge

Location

• OpenCSP_Code: opencsp/opencsp/app/sofast
  https://opencsp.readthedocs.io/en/latest/library_reference/app/sofast/index.html
• OpenCSP_Code: opencsp/example/sofast_calibration
  https://opencsp.readthedocs.io/en/latest/example/sofast_calibration/index.html
• OpenCSP_Code: opencsp/example/sofast_fixed
  https://opencsp.readthedocs.io/en/latest/example/sofast_fixed/index.html
• OpenCSP_Code: opencsp/example/sofast_fringe
  https://opencsp.readthedocs.io/en/latest/example/sofast_fringe/index.html

Status

Operational

Documentation

• B. J. Smith, R. C. Brost, and B. G. Bean.  SOFAST 2.0 User Guide and Technical Description, Document Version 1.0.  Sandia National Laboratories Report SAND2024-10936, August 2024.
• B. J. Smith, R. C. Brost, and B. G. Bean.  OpenCSP Deflectometry Technical Description, Document Version 1.0.  Sandia National Laboratories Report SAND2024-10934, August 2024.
• B. J. Smith, R. C. Brost, and B. G. Bean.  Scene Reconstruction User Guide, Document Version 1.0.  Sandia National Laboratories Report SAND2024-10625, August 2024.
• B. J. Smith, R. C. Brost, and B. G. Bean.  OpenCSP Camera Calibration, Document Version 1.0.  Sandia National Laboratories Report SAND2024-10619, August 2024.
• F. M. Brimigion and R. C. Brost.  SOFAST CAD Layout Tool Overview and User Guide, Document Version 1.0.  Sandia National Laboratories Report SAND2024-10380, August 2024.
