SOFAST 2.0 Data Examples

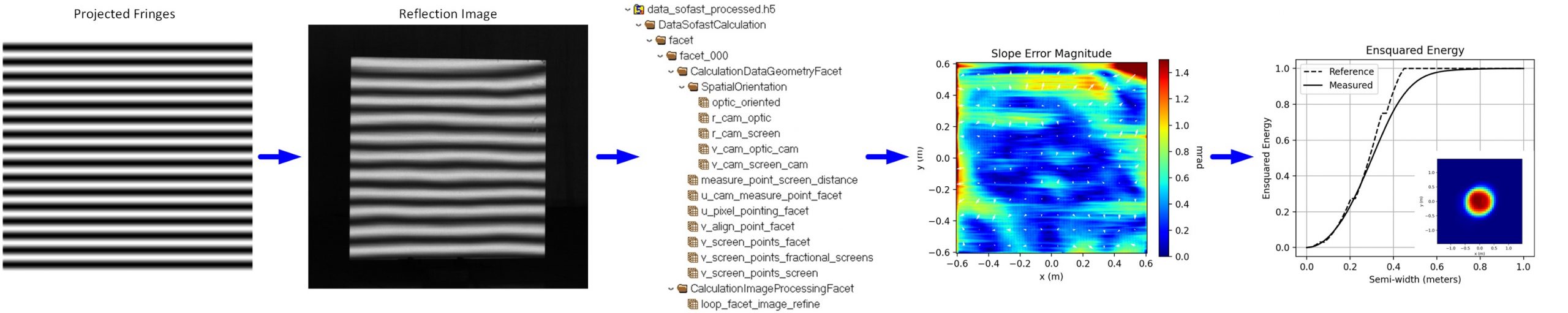

SOFAST computes high-resolution maps of optical slope across a mirror surface. These data sets show example SOFAST calculations, beginning with projected fringes (or fixed-pattern artwork), and showing results of intermediate calculation steps up to final analysis results. The data sets include both images and machine-readable stored information.

Location

  • OpenCSP_Box: OpenCSP_Data/Sandia_NSTTF_Data/Mirror_Example_Data/End_to_End_SOFAST_Examples
  • OpenCSP_Code: opencsp/opencsp/example/

Status

First example posted, but we plan to include more details, and more example cases

Documentation

  • B. J. Smith, R. C. Brost, and B. G. Bean. SOFAST 2.0 User Guide and Technical Description, Document Version 1.0. Sandia National Laboratories Report SAND2024-10936, August 2024.
  • B. J. Smith, R. C. Brost, and B. G. Bean. OpenCSP Deflectometry Technical Description, Document Version 1.0. Sandia National Laboratories Report SAND2024-10934, August 2024.
  • B. J. Smith, R. C. Brost, and B. G. Bean. Scene Reconstruction User Guide, Document Version 1.0. Sandia National Laboratories Report SAND2024-10625, August 2024.
  • B. J. Smith, R. C. Brost, and B. G. Bean. OpenCSP Camera Calibration, Document Version 1.0. Sandia National Laboratories Report SAND2024-10619, August 2024.
